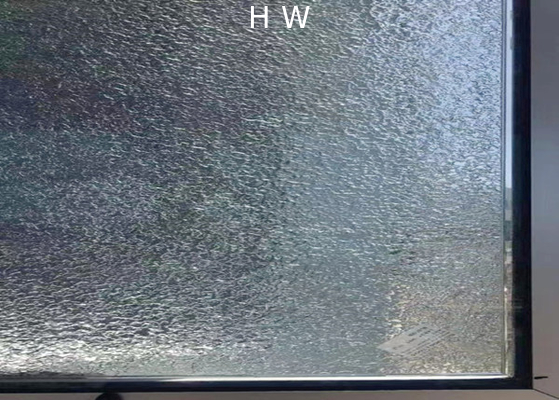

Cast SGP Laminated Glass For Facade

Cast SGP Laminated Glass For Facade

    • Cast SGP Laminated Glass For Facade
    • Cast SGP Laminated Glass For Facade
    • Cast SGP Laminated Glass For Facade
    • Cast SGP Laminated Glass For Facade
  • Cast SGP Laminated Glass For Facade

    Product Details:

    Place of Origin: China
    Certification: CE, SGS

    Payment & Shipping Terms:

    Minimum Order Quantity: 50 Square Meter
    Packaging Details: Wood Crate
    Delivery Time: 15 Days
    Payment Terms: T/T
    Supply Ability: 1000 Square Meter/Month
    Contact Now
    Detailed Product Description
    Material: Tempered Glass+Cast Glass Interlayer: Sentryglas
    UV Resistance: 380UV Cut Humidity Resistance: High
    Pattern: Customized 3D Pattern Weathered Age: Pass 150 Celcius Degree Baking
    Freeze And Thaw Test: Pass Pummel Test: Pass
    High Light:

    SGP Laminated Glass Facade

    ,

    Cast SGP Laminated Glass

    ,

    17.5 mm laminated glass

    Laminated SGP Cast Glass / SGP Laminated Cast Glass For Glass Facade

    Description:

    SGP laminated cast glass is our speciality product. We produce cast glass as per designer´s drawing and then laminate with low iron glass by Sentryglas. We are Sentryglas certificated glass factory.

    we developed new temperature control parameter for Sentryglas glass laminates so that clear transparency of finished glass is produced without cloud. This can not be achieved by common sentryglas temperature control parameter.

    Specification:

    Item SGP Laminated Glass
    Interlayer Sentryglas
    Raw Glass  Low Iron, Cast Glass, Fuse Glass
    Finished Glass  Lamination
    UV Cutting 380nm
    Weathered Age  Double 85 Test
    Impact Resistance High
    Safety High
    Certificate SGS, CE

    Cast SGP Laminated Glass For Facade 0


    In our lab, we tested SGP laminated glass according to the following standard:

    1. Two Hours Boiling Test

    2. Pummel Test After Two Hour Boiling

    3. -40 Celcius Degree 360 Hours

    4. 150 Celcius Degree Baking Two Hours Test

    5. 85 Celcius Degree 85% Humidity 1500 Hours Test

    6. -40 Celcius Degree 85 Celcius Degree Freezing and Thaw Test 10 Circles

    7. UV Radiation 2000 Hours

    Cast SGP Laminated Glass For Facade 1

    Cast SGP Laminated Glass For Facade 2

    Cast SGP Laminated Glass For Facade 3

    Cast SGP Laminated Glass For Facade 4
